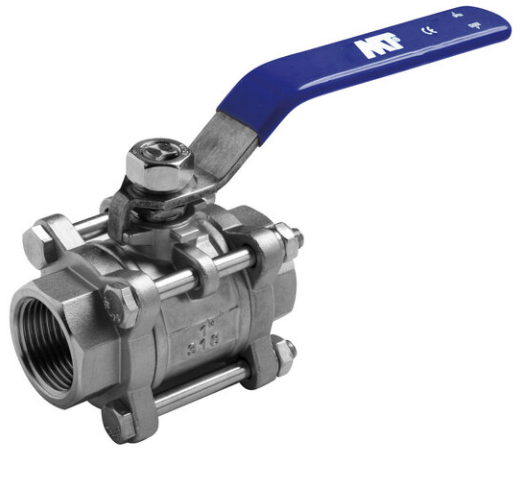

Three-Piece Ball Valve F-F Full Bore Threaded End

Three-Piece Ball Valve F-F Full Bore Threaded End

Three-piece ball valve with female-female threaded connection, full bore and blue handle. Body and ball made of CF8M (A-316) stainless steel, reinforced PTFE ball seats and BSP threads in accordance with ISO 228/1 (DIN 259). The ball valve is used to completely open and close the flow of fluids and is suitable for use in systems for hot and cold water, steam, oils, chemicals, solvents, fluids, air and foodstuffs such as wine and oil. It has an operating temperature of -20 to 180°C and a maximum working pressure of 63 bar (1000 psi). Model 0911 is suitable for both vertical and horizontal installation. MT ball valves are manufactured using the microfusion process. MT Industrial Division products are high-quality stainless steel parts, specifically designed for industrial contexts. The entire range is manufactured under strict quality parameters and complies with the highest certifications in fluid handling.

  • Body and ball made of CF8M (AISI-316) stainless steel
  • Ball seats made of reinforced PTFE
  • F-F BSP threads according to ISO 228/1 (DIN 259)
  • Full bore
  • Maximum working pressure: 63 bar (1000 psi)
  • Operating temperature: -20° / 180°
